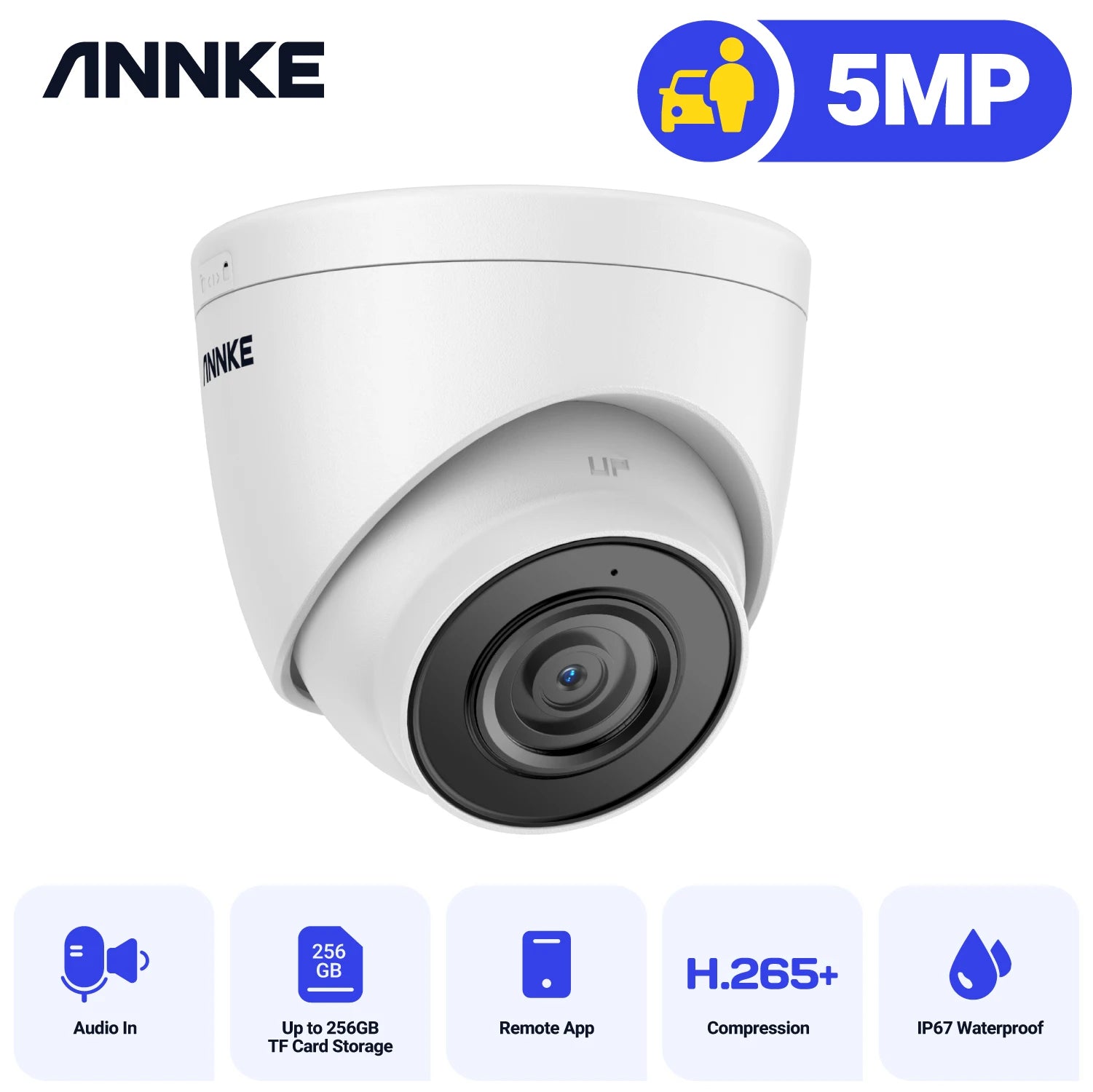

ANNKE 5MP IP Camera Outdoor Indoor POE Security Cameras Smart Home POE Surveillance Cameras TF Card Support With Audio in
ANNKE 5MP IP Camera Outdoor Indoor POE Security Cameras Smart Home POE Surveillance Cameras TF Card Support With Audio in
Couldn't load pickup availability
SPECIFICATIONS
AI Functions: Human Detection
Audio Output: 1CH BNC
Brand Name: ANNKE
Color: WHITE,black
Color Night Vision: Yes
Connectivity: RJ45
High Definition: 5.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP67
IR Distance(m): 30m
Installation: Ceiling,Wall Mounted
Lens (mm): 2.8mm
Lens Quantity: Single Lens
Megapixels: 5 MP
Model Number: I51DS
Origin: Mainland China
Power Mode: Mains Electricity
Power Supply: Normal
Power Supply(V): DC12V
Rechargeable Battery: None
Scene: Indoor and outdoor
Sensor: CMOS
Shell Material: Plastic
Special Features: Waterproof / Weatherproof
Style: Turret Camera
Supported Mobile Systems: Windows Mobile,Android,IOS
Supported Operating Systems: No
Video Compression Format: H.264,H.265
Zoom: None
Zoom type: None
3K 5MP Main Features:
★ 3K 5MP IR Network Camera with 16:9 image scale
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Up to 100ft night vision with EXIR 2.0
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in Microphone, record with audio
★ Built-in microSD/SDHC/SDXC Slot, up to 256 GB
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm/2.8mm |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
2.8MM: Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° |
|
Number of Infrared LEDs |
2 pcs |
|
Night Vision Distance |
Up to 100 ft/30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP |
|
ONVIF |
Support 4MM Lens |
|
API |
2.8MM Lens :Open Network Video Interface |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection,video tampering alarm, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Dimension (L X W X H) |
Ø 110 × 100.8 mm (Ø 4.3" × 4.0") |
|
Weight |
0.6 lb./270 g |
|
