ANNKE 4K Smart Dual Light Varifocal Dome Network Camera 4X ZOOM IP67 Motion detection Human Vehicle Detection 8MP Smart Home
ANNKE 4K Smart Dual Light Varifocal Dome Network Camera 4X ZOOM IP67 Motion detection Human Vehicle Detection 8MP Smart Home
Couldn't load pickup availability
SPECIFICATIONS
AI Functions: Human Detection
Alarm Action: FTP Photo,telefon Alarm,Email Photo,Local Alarm
Audio Output: Two Way Audio
Brand Name: ANNKE
Color: WHITE
Color Night Vision: Yes
Connectivity: RJ45
High Definition: 8.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP67
IR Distance(m): 50
Installation: Ceiling,Normal,Wall Mounted
Lens (mm): 2.8-12mm
Megapixels: 8MP
Minimum Illumination(Lux): 0.05
Model Number: I91DQ
Optical Zoom: 4X
Origin: Mainland China
Power Supply: Normal
Scene: Outdoor
Sensor: CMOS
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Supported Operating Systems: No

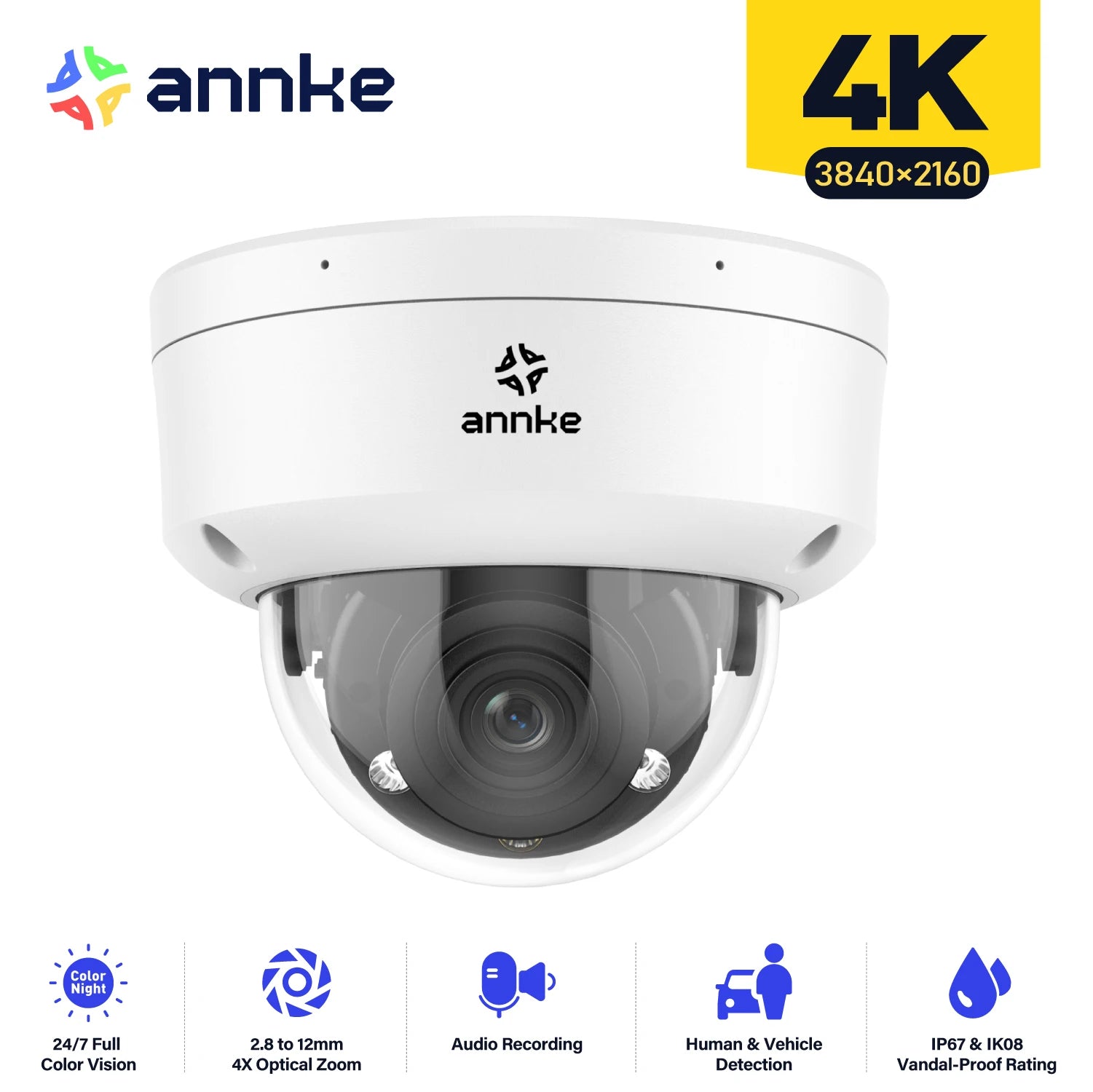

★ 4K smart dual light varifocal Dome network camera
★ 2.8 to 12mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Built-in Microphone |
Record with audio, environment noise filtering |
|
Built-in Speaker |
Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB. |
|
Lens |
2.8 to 12 mm motorized varifocal |
|
DORI |
D: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 50 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G),ISAPI |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Web Browser |
Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
APP |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
12 VDC ± 25%, 0.9 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W |
|
Operating Conditions |
-22 °F – 140 °F/-30 °C – 60 °C.Humidity 95% or less (non-condensing) |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
105 mm × 285.8 mm (Ø4.13" × 11.25") |
|
Weight |
Approx. 805 g (1.8 lb.) |
|
